Sea Trial Checklist

❑ Review and complete full land-based checklist.

❑ Once the boat is in the water the MFD screen with the Seakeeper Ride app should have no Fault Codes. If
equipped with optional keypad, the Keypad will have a white ring light around the center Seakeeper “S” logo
and the Seakeeper Ride system should populate in the ‘Auto’ mode on the MFD.

Note: If Fault Codes appear when Seakeeper Ride is turned on and they cannot be cleared, please return to
dock, and troubleshoot your system.

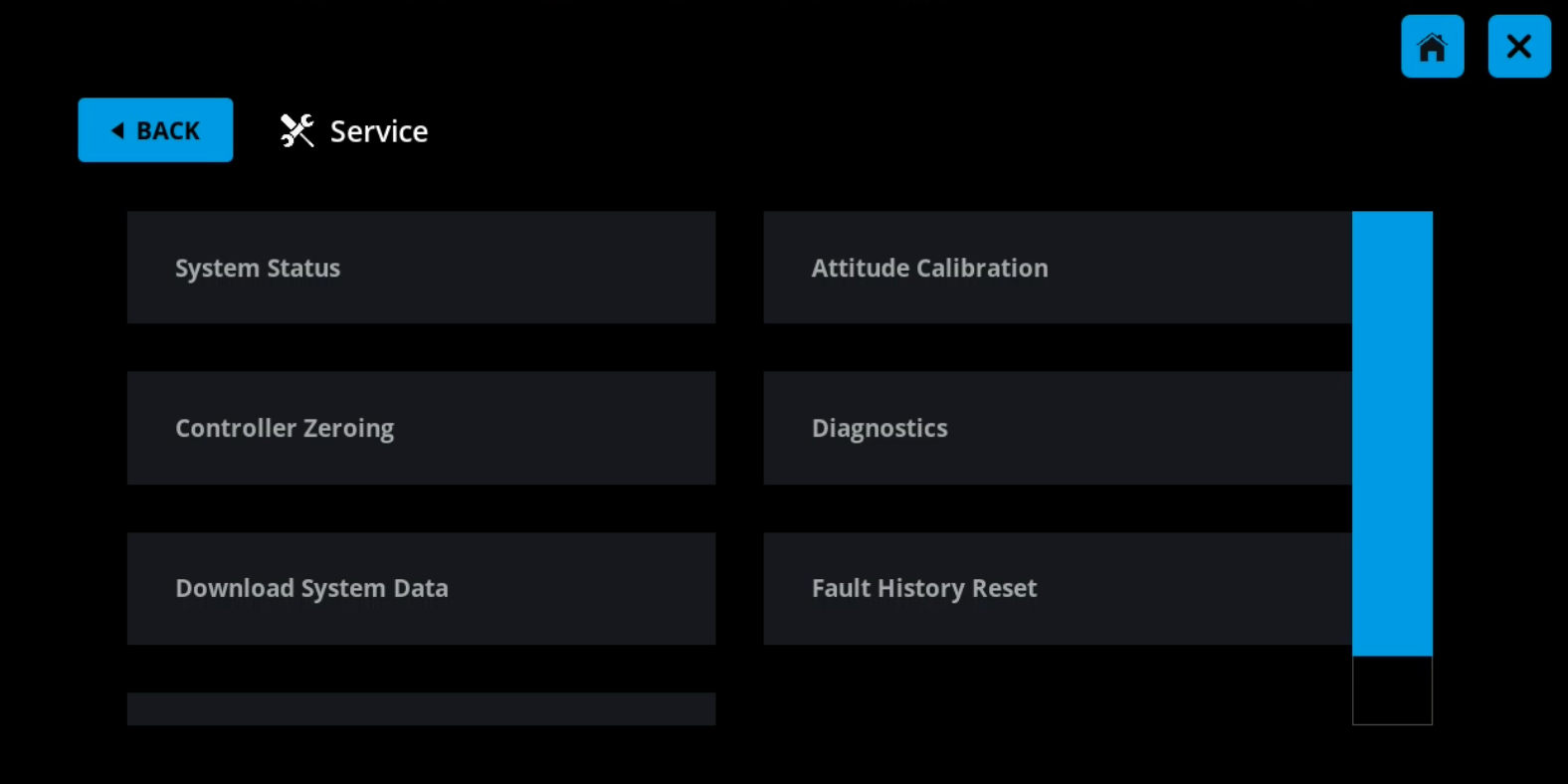

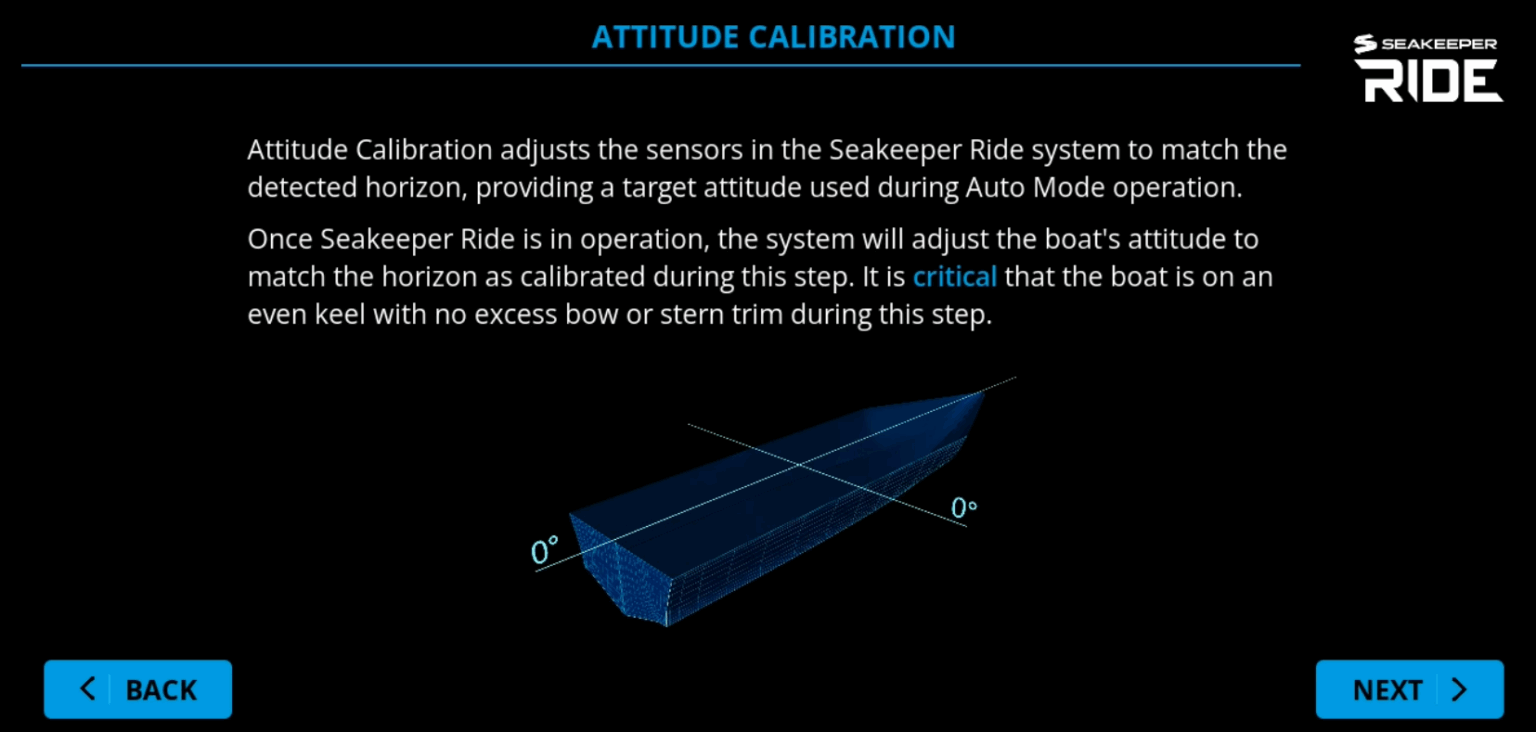

❑ Use the “Attitude Calibration” screen, calibrate the Seakeeper Ride while boat is stationery and level.

❑ In a safe, open, calm body of water, select Manual mode and bring the boat on plane holding a moderate speed
typically, between 15 and 25mph.

❑ Using the directional arrows or Keypad arrows to deploy the Blades – press the up arrow 10x to deploy both
Blades to 50%. Ensure the bow lowers.

❑ Hold the center button for 5 seconds retracting the Blades. Ensure the bow raises.

❑ Press the right arrow 5 times – Ensure the boat rolls starboard side down.

❑ Hold the center button with the ‘Seakeeper S logo’ for 5 seconds.

❑ Select the center button to enter Auto Mode.

❑ If conditions are appropriate, drive through a variety of headings selecting between Auto (stabilized) and Manual
(non-stabilized) mode to feel the Vessel Attitude Control of your boat!

❑ While in Auto Mode, reduce speed below 5mph and accelerate to 30mph to test Trim Command Curve and
review its operation here – https://manuals.seakeeper.com/ride/seakeeper-ride-operation-manual/2-seakeeperride-operation/2-3-trim-command-curve-tcc/
