Controller Footprint & Envelope Drawings (All Systems)
Controller Footprint & Envelope Drawings
Updated 05/21/2025
High detail drawings can be found below to determine how much physical space the Seakeeper Ride Controllers will require. The mounting footprint is the size and shape of the Controller surface that will adhere to the hull. The Controller envelope is how much space the Controller will take up when mounted to the hull with the Blade rotated to its maximum range upwards. All dimensions are in inches.
Seakeeper Ride 450

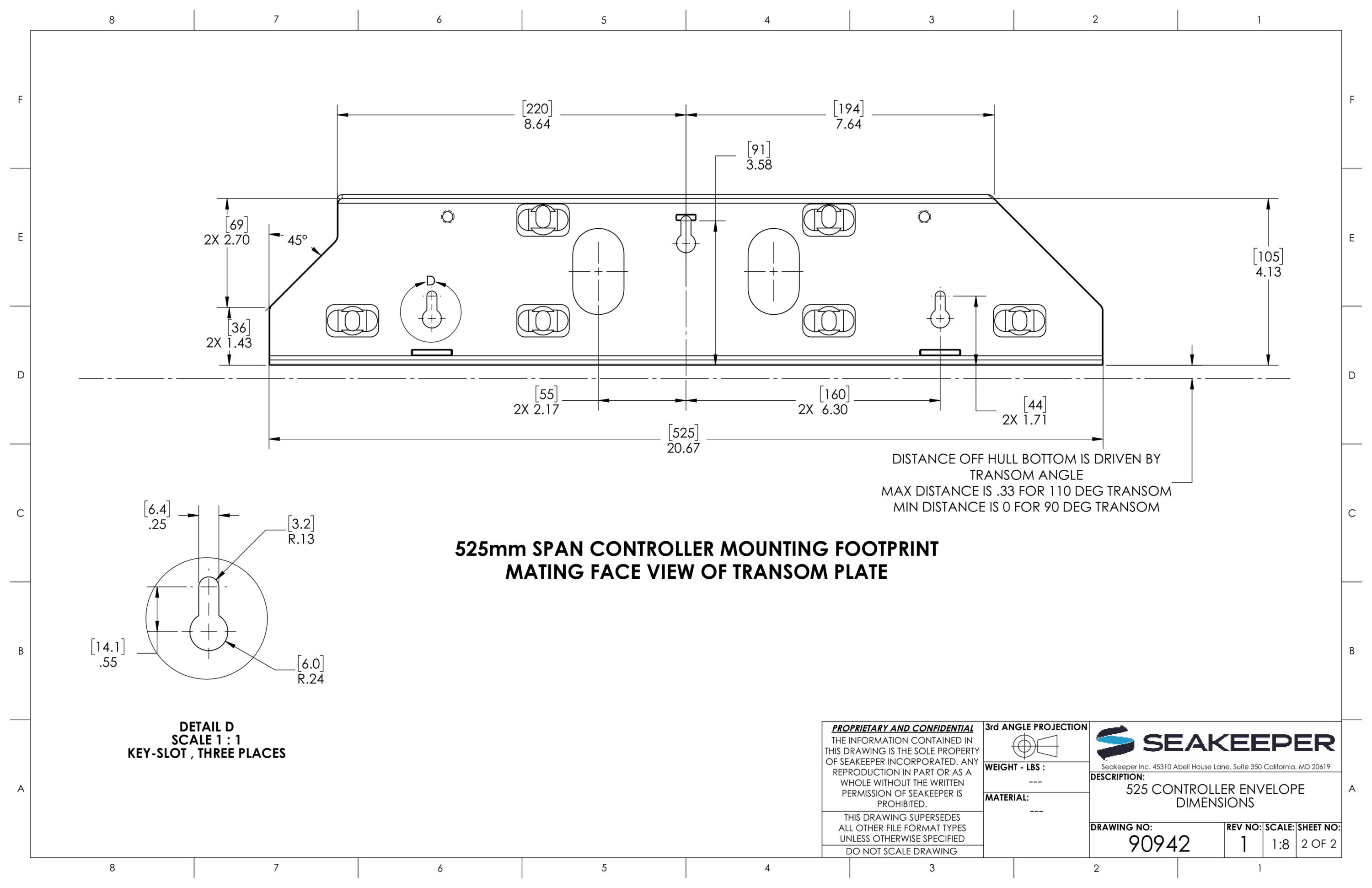

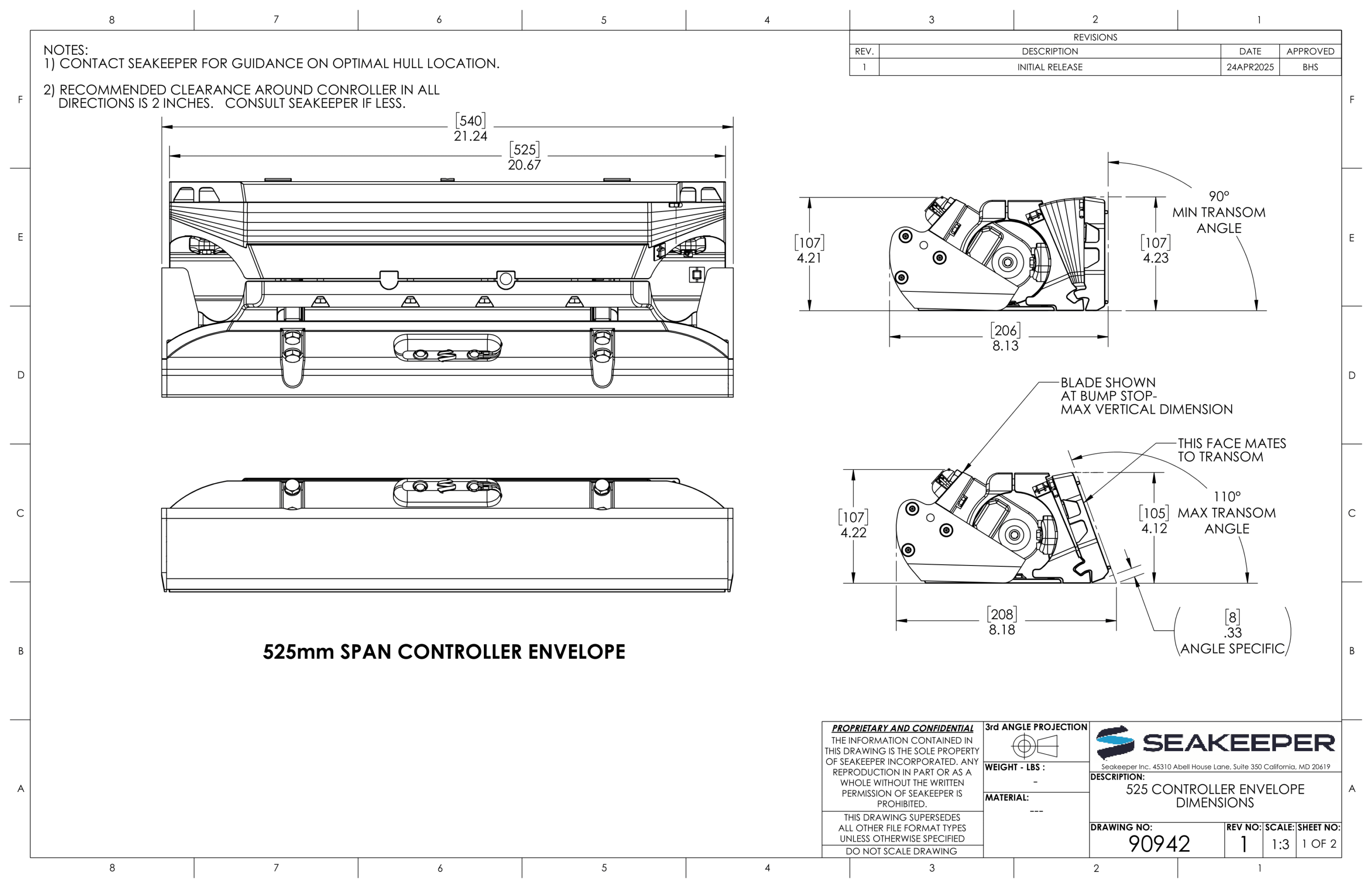

Seakeeper Ride 525
Seakeeper Ride 600
Seakeeper Ride 750 (For Use with 1125, 1275 and 1500)
Seakeeper Ride 750 Quad (For use with 900 and 1125)
Seakeeper Ride 525 (For use with 900, 1050 and 1275 )
